NOMAD RAY

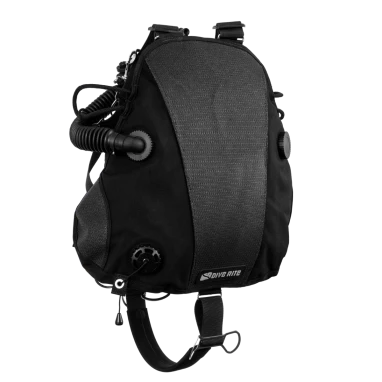

The is the product of years of design, development, field testing and feedback from some of
the world’s leading sidemount divers and instructors. The result is a sidemount system that has a flat,
streamlined fit and an ergonomic shape that sits tight against the diver’s body. Its unique and innovative
features will appeal to sidemount divers of all skill levels.

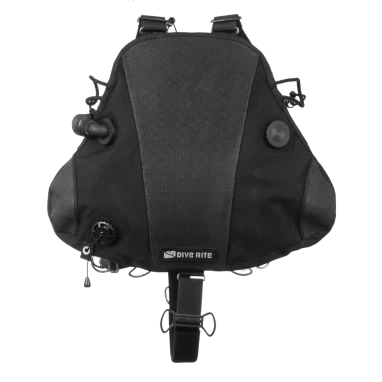

– If you happen to find yourself in a tight spot, the full-
length abrasion resistant “skid plate” has your back. Providing wear protection exactly where it’s
needed the most. Superfabric® is a fast drying, highly durable and slash resistant material. The
Nomad Ray is ready to stand up to the toughest diving environments.

The Nomad Ray uses a fast, tool-less bungee lenght adjustment system.
Simply pull to the desired length, tie a single overhand not, and tuck the excess into the integrated
sleeve. A quick-adjust belly band wiith a custom molded bungee hook keeps the wing wrapped snug
around the diver’s body.

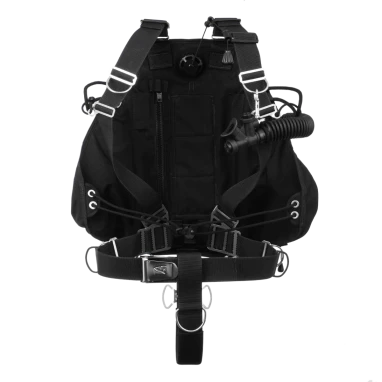

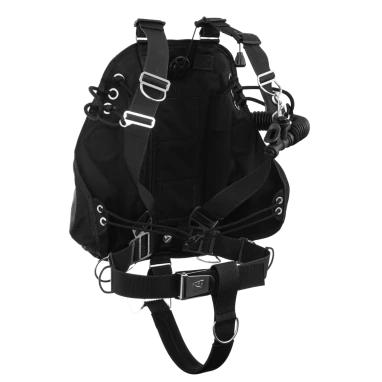

The Nomad Ray can be easily adjusted to comfortably fit all body types. The
independently adjustable harness design can be quickly setup for any diver. Shoulder and waist
webbing can be easily replaced independently if damaged or trimmed too short.

The Nomad Ray is perfectly adapted to diving aluminum or steel tanks, in warm or
cold water, from entry level sidemount dives to the most demanding technical exploration. A
42lb lift capacity provides the buoyancy necessary for heavy steel tanks and multiple stage or
deco bottles. A dual bladder option is available to provide redundancy.

Custom designed stainless steel hardware pieces include the waist
transition plates, drop down D-rings, sliding D-rings, dog bone crotch strap double D-ring and
bungee retention slides.

A zipper on the inside of the wing allows access to three
integrated weight pockets capable of holding up to 5 pounds each of hard or soft weight. This
design maintains the lowest profile possible while providing quick access for adding trim weights
or adjusting mission specific weighting. Padded pocket walls add protection and comfort for the
diver’s back.

A 16” corrugated inflation hose allows multiple mounting options to keep
the inflator close at hand. The hose can easily be swapped from the left to the right side of the

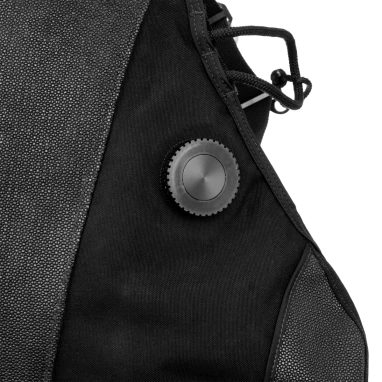

wing according to diver preference. The Ray includes two pull dump/OPVs. One is located at the
top on the inside of the wing with a shoulder pull dump utilizing custom molded slides to route
the pull cord. The second is located on the bottom outside, offset to the diver’s left to maintain
a low profile back and for easier access when used with multiple cylinders or CCRs.

Nomad Ray Tech Specs

• Made in USA
• SuperFabric™ material with 600 denier fabric for the back side center panel,
  and 1000 denier nylon fabric on the diver’s side.
• Inner Bladder: Heavy duty 420 denier nylon laminated
• 42 lbs (19 kg)
• 35 lbs (15.9 kg)
• 16 in (30.4 cm) corrugated with inflate/deflate valve. Can be configured on left or
  right side.
• 1 pull-dump at top, center, and one at bottom/right corner of wing
• 3 padded internal pockets that can hold up to 5 pounds each of
  either hard or soft weight
• 42 in of diamond braid bungee for each side adjustment
• 2 in (5 cm) padded strap with scooter ring
• Marine-grade stainless steel throughout: 2 angled D-rings on shoulders, 2
  angled D-rings on waist, 2 sliding waist D-rings, 2 chest bungee retainer slides, 2 rear

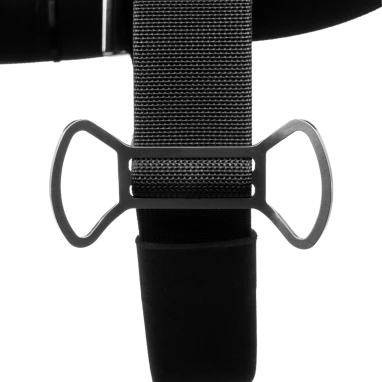

  drop D-rings for primary tank attachment, 1 dog bone double D-ring on crotch strap for
  accessories.
• User replaceable 2-inch harness webbing used throughout
• Fully adjustable, one size fits all
• 5.7 lbs (2.59 kg)
