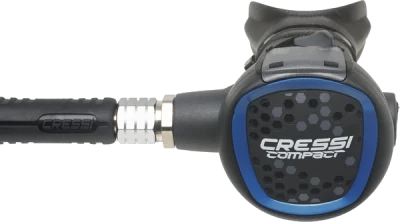

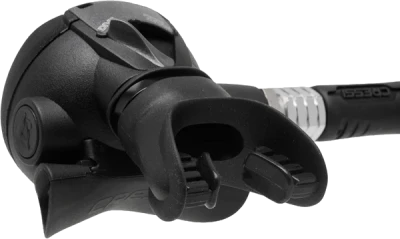

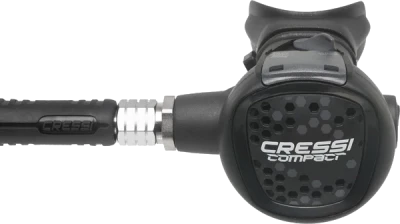

CRESSI Mc9 + Compact Regulator

This premiere travel regulator packs maximum performance into minimum space. A true featherweight second stage, the compact is built from lightweight techno-polymers to eliminate jaw fatigue. Easy to pack and easy to dive, the compact includes dive/pre-dive venturi switch for managing freeflow and maximizing performance at depth.

TECHNICAL FEATURES

• Technical features 1st stage
• Balanced diaphragm (seal chamber for mc9sc)
• 2 outlets hp 7/16 unf
• 4 outlets mp 3/8 unf
• Service pressure: 300 bar (4350 psi) din version, 232 bar (3365 psi) yoke version
• Calibration pressure: 10 bar
• Brass body electroless nickel plated
• High capacity conical fi lter electroless nickel plated
• Aisi 316 removable nozzle
• Hyper-balancing
• Anti-pressure drop pneumatic spring
• Setting spring: stainless steel with micropeening treatment
• Replaceable cylinder with anti-friction and anti-corrosion properties
• Elastomer protector
• Flow rate: 4500 l/min
• Yoke version weight: 590 gr
• Din version weight: 450 gr
• Technical features 2nd stage
• Downstream system
• Adjustable venturi effect
• Patented antifriction lever
• Big purge button
• Anti-scratch surface
• Bayonet-type cap holder with security lock
• Removable exhaust tee without tools
• Weight without hose: 135 gr
• Combination performance
• Average cracking effort 6 mbar
• Average breathing effort 1 j/l
• Jacketed hose extremely light and flexible weight: 153 gr
• Certification en250/2014 a>10° c
